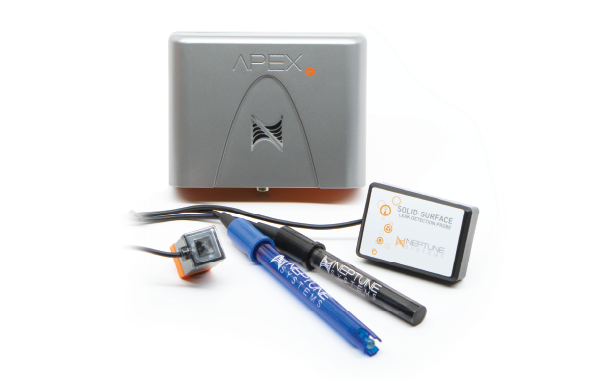

THE A3 SERIES OF APEX CONTROLLERS
An Apex monitored aquarium is a successful aquarium! Introducing the exciting all-new A3 Series of Apex controllers. From the Jr. to the Pro, Apex has a solution for every aquarium level.
A3 Series Apex Controllers – Monitoring and Control Solutions for every Aquarist!
Ultimate control for any serious control freak.
Our A3 Apex Pro System offers the most complete experience of monitoring and control for the discerning aquarist.
APEX
Core control and everyday monitoring.
The A3 Apex System offers the control but scaled back monitoring with room to grow for the everyday aquarist.
Monitoring for all, control ready.
The A3 Apex Jr. is the first monitoring only solution that monitors exactly what you need; and, when ready, opens the door to control for all aquarists.
| Apex PRO | Apex | Apex Jr | |
|---|---|---|---|
| I want to monitor my aquarium at any time from any device. |  |
|
|
| I want to monitor critical parameters, like temperature, to protect my tank. | |
|
|
| I want to be alerted by text, SMS or email when parameters are out of spec. | |
|
|
| I want to know if power of Wi-Fi connection is lost to my aquarium. | |
|
|
| I want to be alerted to a possible overflow or leak in or around my aquarium. | |
|
|
| I want to be able to automate equipment to respond to parameter changes or emergency situations. | |
|
Expandable |
| I want to know that my equipment is operating efficiently and correctly. | |
|
Expandable |
| I want to know the relative cleanliness of my aquarium water. | |
Expandable | Expandable |
| I want to remotely check the exact water depth in my sump and reservoir. | |
Expandable | Expandable |
| I want to be able to easily connect other Apex-ready switch boxes and devices. | |
Expandable | Expandable |
| I want to be notified or control action based on water above or below a certain level. | |
|
|
Included
Sold separately
APEX PORTS
Almost endless connectivity, creating a truly modular experience.
APEX
WIRELESS INTERNET-READY!
When possible we recommend the superior reliability of a wired network connection for your Apex or Apex Pro, however when that’s not possible your Apex is perfectly capable connected on WiFi.
WHAT’S INCLUDED?
| Apex PRO | Apex | Apex Jr | |
|---|---|---|---|
| Temperature Monitoring | |
|
|
| pH Monitoring | |
|
|
| ORP Monitoring | |
— | — |
| Salinity Monitoring | Probe Available Separately | — | — |
| FMM Input Ports | 4 | 3 | 2 |
| Controllable Outlets | 8 | 8 | — |
| 1LINK Outputs | 3 | 3 | — |
| DC 24V Outputs | 2 | 2 | — |
| Digital Inputs | 6 | 6 | — |
| Audible Alarm Buzzer | |
|
|
| Wi-Fi | |
|
|
| Hard-wired Ethernet | |
|
— |
| Liquid Level Monitoring | |
— | — |
| Leak Detection | Optical | Analog | Analog |
| Variable Outputs (0-10V) | 4 | — | — |
| Optical Sensor | — | |
|
| Expandable | |
|
|
| Availability | Now | Now | Soon |
APEX WATER ACCESSORIES
Temperature Probe
Keeping a stable and consistent temperature in the aquarium is paramount to the health of your inhabitants. Monitoring temperature and especially temperature changes throughout the day is mission critical.
Having a quality temperature monitoring solution that also alerts you to over or under temperature situations is a must for a successful aquarium.
INCLUDED WITH
pH Probe
Keeping pH stable is critically important to healthy coral in a reef aquarium. A stable pH is also less stressful for all the aquarium’s inhabitants.
Monitoring pH not only allows you to tune in desirable parameter stability but also serves as an important warning system to warn you of negative chemistry changes.
INCLUDED WITH
ORP Probe
Oxidation Reduction Potential (ORP) is the measurement of water cleanliness. ORP level indirectly indicates the ability of beneficial bacteria in the aquarium to reduce contaminants like nitrates, ammonia ECT. Ultimately it is in part a measure of the electrical charge available to break down these contaminants.
Sudden changes in ORP are often reflective of organically bad things happening the aquarium. If a fish passes or too much food is available, the change in ORP can prove to be a much needed signal to investigate or take action.
INCLUDED WITH
Optical Leak Sensor
The Optical Multi Surface Leak Sensor is an improved version of the Solid-Surface Leak Sensor (LD-2).
Improvements include an epoxied design that allows the sensor to be utilized repeatedly and an optical sensor that allows the sensor to be placed on any surface including metal and epoxied cement floors without returning a false activation.
INCLUDED WITH
Solid Surface Leak Sensor
When it comes to water on the floor, time is critical. Upon contact with liquid this sensor will communicate to your Apex to send an alert or trigger other actions.
With a wire length of 5 meters (16.3ft) this sensor is a must have for placement inside and outside of your sump.
Protect your aquarium and your home
INCLUDED WITH
Optical Sensor
Think smart float switch. The optical sensor indicates the presence of water above or below the sensor location.
The Magnetic Optical Sensor features an improved look and feel. The sealed housing and magnetic mounting design prevent water incursion and make mounting quick and easy.
INCLUDED WITH
Liquid Level Sensor (LLS)
How much water has been added? How much solution is left? Until now the only way to find out was to measure it yourself.
New to aquarists, and exclusive to Apex, is the ability to specifically measure water depth in inches or centimeters. Available in four different sizes- 4″, 15″ 23″ and 35″ there is a perfect length for water level monitoring in, aquariums, reservoirs, and liquid containers.
Take level monitoring to the next level with the LSS.
INCLUDED WITH
LIMITLESS POSSIBILITIES…
ENERGY BAR 832 – THE ULTIMATE POWER CONTROL HUB
INCLUDED WITH
When we decided to create an Energy Bar for this new Apex, we designed it from the ground up. Not only does the Energy Bar 832 have eight 120V AC outlets, but it includes an internal 100W 24VDC power supply as well. That power supply feeds three built-in 1LINK ports as well as two 24VDC accessory ports.
And, each individual outlet has independent power monitoring and there are individual LED indicators for each outlet. Read on and watch the videos for more info.
Total power connections for your aquarium devices
120V AC Outlets all switched with relays rated for millions of cycles
1LINK 24VDC Smart outlets for devices such as WAV, DOS, etc.
Switchable 24VDC outlets for accessories such as small pumps, solenoids, fans, etc.
IMPORTANT NOTE FOR INTERNATIONAL CUSTOMERS
The EnergyBar 832 is for use in North America (USA, Canada, and parts of Mexico) and other locales where the electrical service grid provides 120VAC 60Hz power. For sale in international regions which use 230VAC 50Hz power, Apex systems are bundled with an EnergyBar 632 equipped with 6 outlets specific to that region (UK, EU or Schuko).
SETUP HAS NEVER BEEN EASIER
From the moment you open the box you are guided along every step of the way from what is in the box, getting connected to your network and setting up the monitoring and control of your aquarium.
