Modern Skimmer Design & Functionality

The impressively compact footprint of the IceCap K1-Nano Protein Skimmer is the ideal candidate for small aquariums up to 30 gallons. The included magnet mount allows for easy placement on surfaces up to a half-inch thick. Enjoy the quiet operation and adjustment provided by the submerged pipeless output valve. It also disassembles completely for easy cleaning and maintenance.

Compact & Built to Last

Master crafted from robust PVC and high-quality acrylic. All components are marine safe and refined in every aspect to provide the latest enhancements in foam fractionation and the highest in quality.

An impressively compact footprint makes it the ideal candidate for tight compartment applications. Every aspect of the skimmer disassembles completely for easy service.

Quiet Performance & Control

At the Core of the IceCap K1, you will find the DCair 200 skimmer pump built to provide efficient performance.

The pipeless output offers fine-tuning and trouble free underwater outflow plus quiet operation. Our pipeless design not only saves on space but also allows the outgoing water to exit on the side of the skimmer and below the water surface providing splash-free circulation in the sump.

Bioload Handling

The bioload of an aquarium refers to its ability to process waste in proportion to tank volume. Protein skimmers work best when properly matched with the bioload of the system.

(EXCLUDING SUMP)

• 10 GALLONS
• 20 GALLONS
• 30 GALLONS

Impressive Performance - Remarkably Small Footprint

• Magnet Mount
• Distinctive Turbulence Reducing Body
• Solid PVC & Acrylic Construction
• Bubble Dispersant Chamber
• Pipeless Output Valve
• Efficient & Quiet Operation
• Disassembles Completely for Easy Cleaning & Maintenance
• In-Sump Installation Only

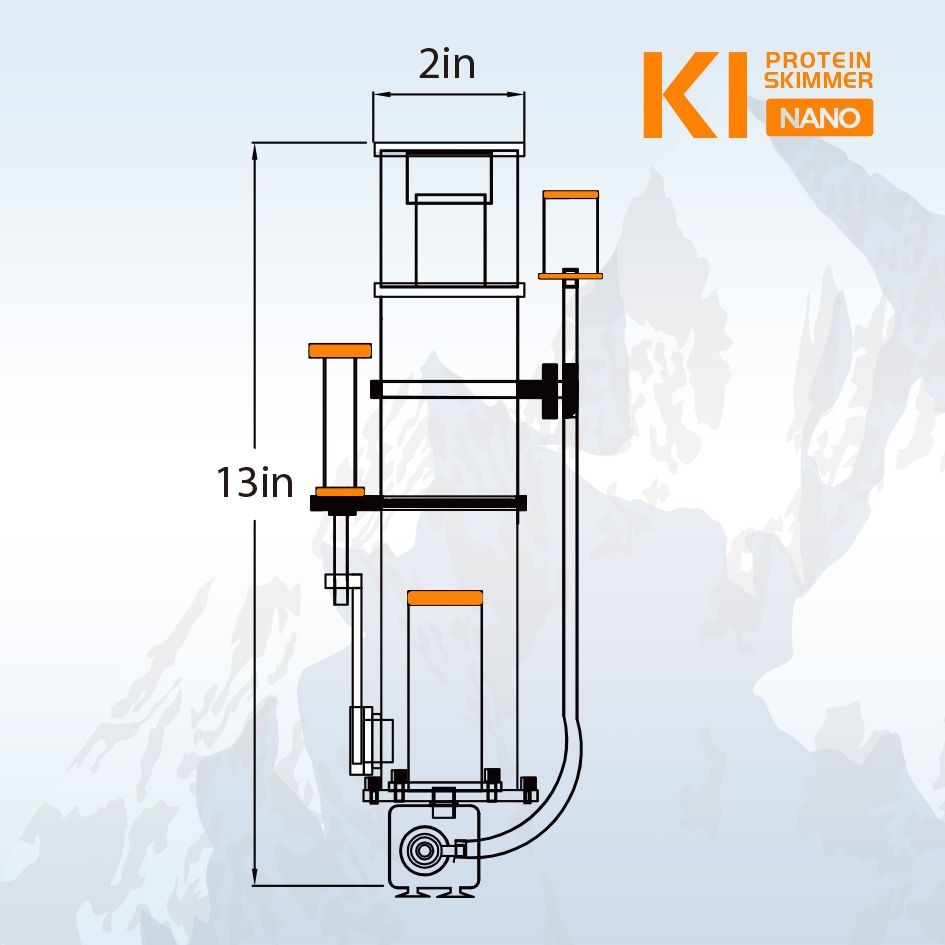

K1-Nano Technical Specs

Skimmer Body: 2in
Footprint: 2.7in x 3.2in
Footprint with mount: 4.75 x 3in or 3.5 x 4in
Total Height: 13in
Magnet Mount: Up to 1/2in thick

Recommended
Water Height: 6 - 9in

Pump Information

DCair 200 Pinwheel Pump
Power Consumption: 5watts
Air Draw: 100lph / 3.5scfh*
Water Draw: 26gph
*Air and water results will vary depending on aquarium setup
